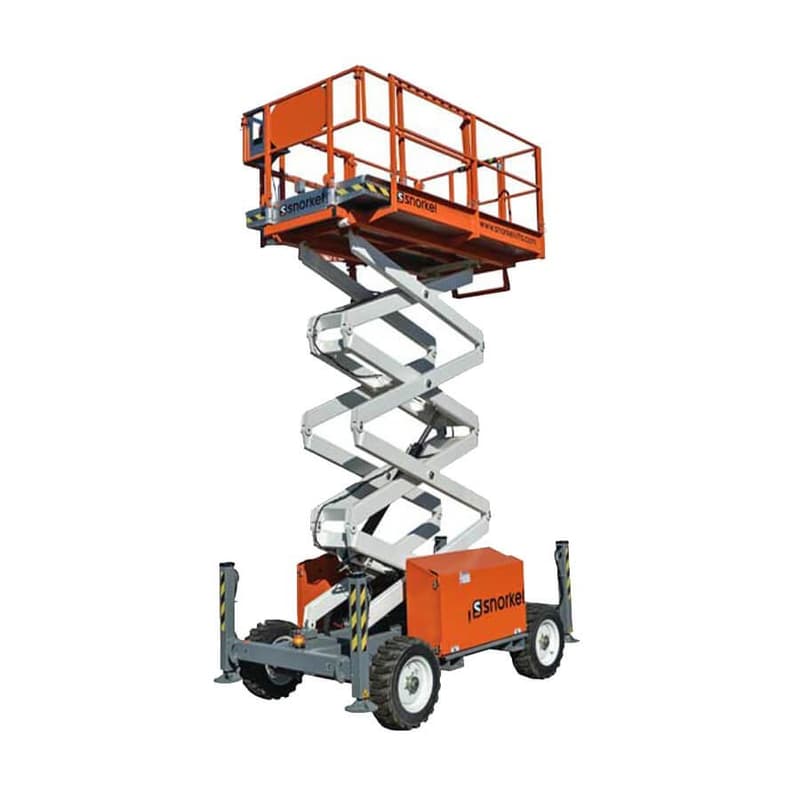

The Snorkel S3370RT is a compact rough terrain scissor lift which delivers excellent 4-wheel drive performance from compact dimensions. Features a roll-out deck extension, high grip non-marking foam filled tyres and auto-level hydraulic outriggers.

Specifications

• Max Working Height 12.0m
• Max Platform Height 10.0m
• Platform Size (stowed) 1.6m x 2.8m
• Platform Size (extended) 1.6m x 4.0m
• Deck Extension 1.2m
• Overall Width 1.8m
• Overall Length 3.4m
• Stowed Height 2.7m
• Min Height (guardrails folded) 2.0m
• Ground Clearance 330mm
• Platform Capacity (SWL) 454kg
• Gradeability 35%
• Weight 3,919kg
