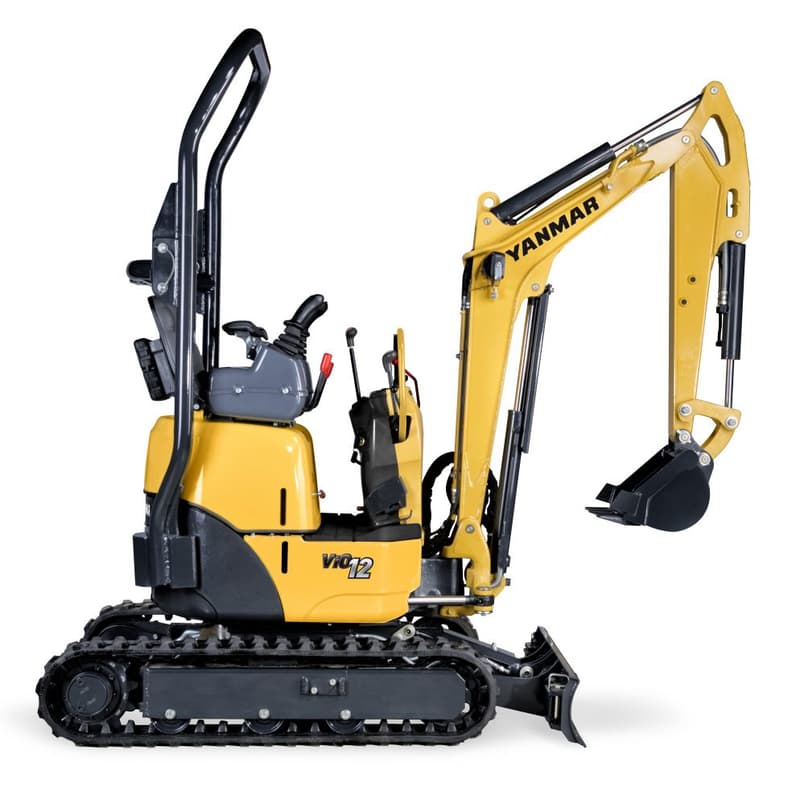

The Yanmar 1.2 Ton Mini Digger is the ultimate tradesperson’s tool. Whether you are digging drainage, laying foundations or demolishing interiors, this ultra-compact machine will get you into the tightest of spaces.

It allows easy access in narrow areas and the possibility to work along a wall. The extended undercarriage, the front part of the upper frame doesn’t exceed the width of the crawlers and the width of the retracted undercarriage reduces to 830 mm.

Specifications

• Operating weight 1245 kg
• Transport dimensions 3040 x 1000 x 1580 mm
• Digging depth 1950 mm
• Dumping height 2370 mm
• Minimum width 830mm
• Rear swing radius 650 mm
• Digging force (arm/bucket) 580 / 1390 kgf
• Travelling speed 2,1 to 4 km/h
• Yanmar diesel engine 3 cylinders, 854 cm3, 9,2 kW / 12,5 HP / 2000 rpm
