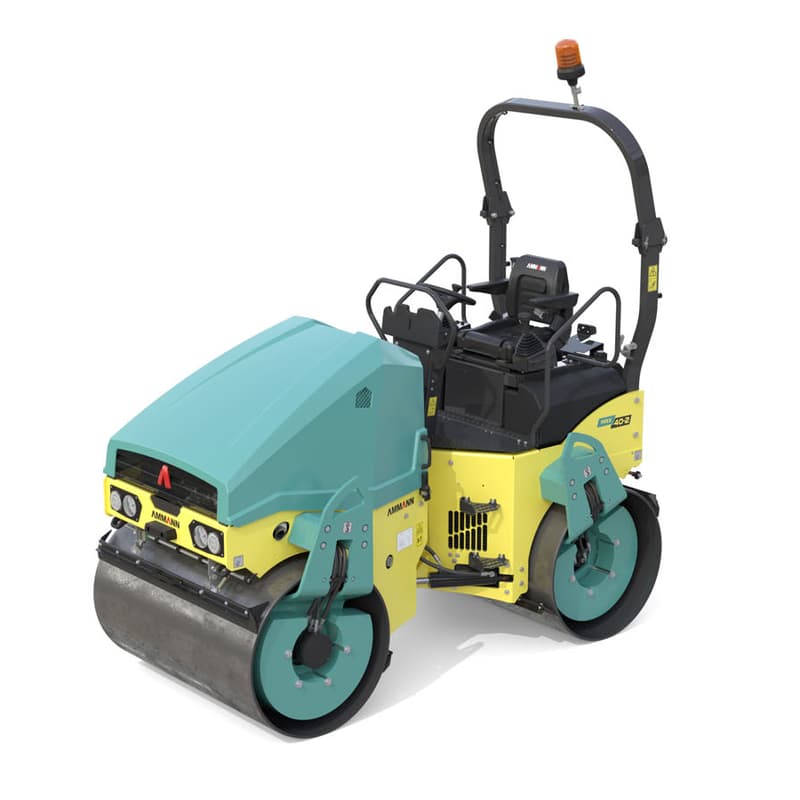

The Ammann ARX 40-2, 4 Tonne Double Drum Roller makes it even easier for operators to work next to obstructions such as curbs.

The roller, with a drum width of 1300 mm (51.2 in), features a new articulating joint that enables quick drum adjustment from in-line to off-set configurations. Rollers that are offset are able to work close to obstructions. Operators need watch only one drum, knowing the second will be a safe distance from the obstruction. The in-line setting, which enables equal distribution of compaction forces, is preferred on more open jobsites.

Perfect for small and medium construction sites, city roads, boardwalks, city street repairs and road maintenance.

Specifications

• Machine Length 2915 mm
• Wheelbase 1950 mm
• Machine Height 2840 mm
• Machine Height (Folded Rops) 2150 mm
• Drum Width 1300 mm
• Working Width with Offset 1340 mm
• Machine Length (Folded Rops) 3000 mm
• Ground Clearance 330 mm
• Drum Diameter 850 mm
• Machine Width (total) 1385 mm
• Operating Weight Max. 4450 kg
• Travel Speed 10 km/h
