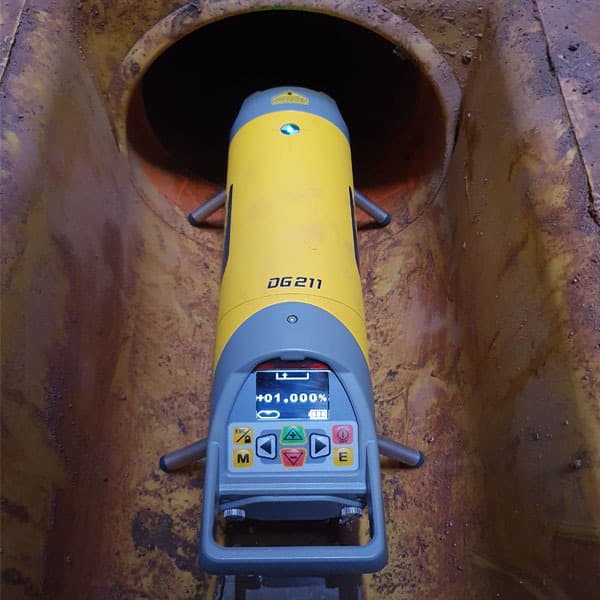

The Spectra Precision DG211 Pipe Laser is a compact and economical automatic dial-in self-leveling pipe laser capable of fitting inside a 4" (102mm) pipe.

Needing to lay pipe laterals with a 100mm diameter? Wanting to have a pipe laser that fits inside a 100mm pipe? The DG211 has been specifically designed with this task in mind.

The clear and precise OLED display is tilted at the right angle for viewing from above the manhole or trench, indicates the current grade value, the roll position of the housing, the alignment position of the beam, and the battery status. Large keypad buttons and multiple input modes made it easy to input grade and function selections.

Specifications

• Accuracy: +/-10 arc seconds (+/-4.8mm at 100 metres)
• Laser Class: Class3R, less than 5mW
• Grade Range Capability: -20 to +30%
• Self Levelling Range: -10 to +25%
• Minimum Grade Setting: 0.001%
• Water & Dust Protection: Waterproof to IP68
• Operating Temperature: -20 deg C to +50 deg C
• Weight: 2.86kg
• Battery Power: Li-Ion
• Battery Life: up to 36 hours
• Battery Charging Time: Max 6 hours
