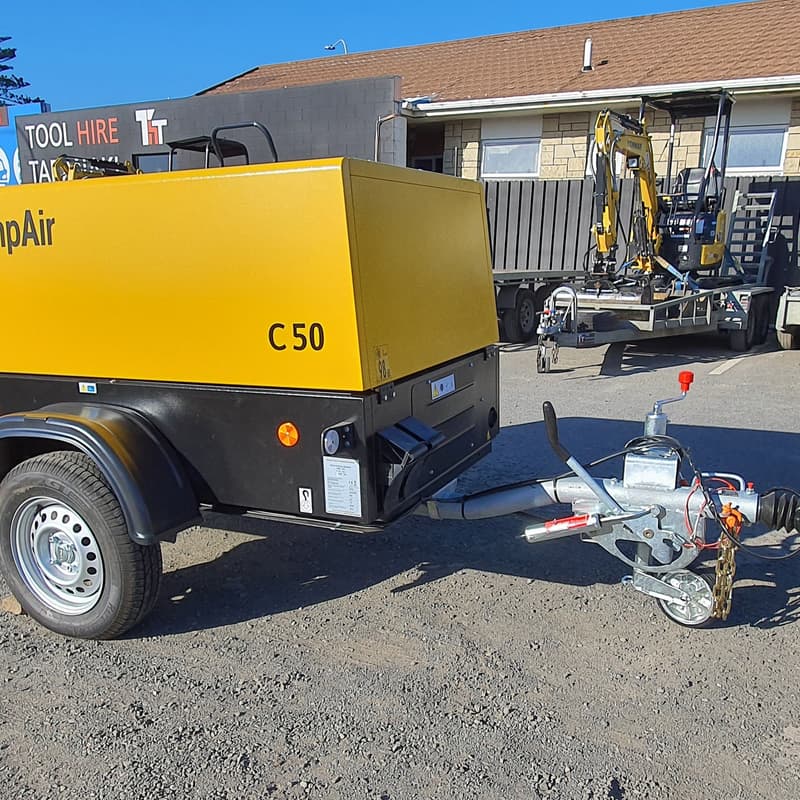

The CompAir C50 is driven by a very quiet-running, water-cooled Yanmar 4TNV88BKCP 4-cylinder diesel engine. The compressor is particularly suitable for applications in cities and built-up areas, where stringent restrictions are set on noise emissions.

Specifications

• Model: C50
• Volume Flow (m3/min): 5
• Operating Pressure (bar): 7
• Compressed air outlets: 2×3/4”
• Engine: Yanmar 4TNV88BKCP
• Installed engine power (Kw): 35
• Engine off load speed (1/min): 1600
• Engine full load speed (1/min): 2800
• Full tank capacity (L): 60
• Operating Weight (Kg): 810
• Height adjustable with brake
• Power Sound Level dB(A) LWA: 98
• Pressure Sound Level dB(A) LPA: 69
• Overall Dimensions (LxWxH)mm: 3797x1490x132
